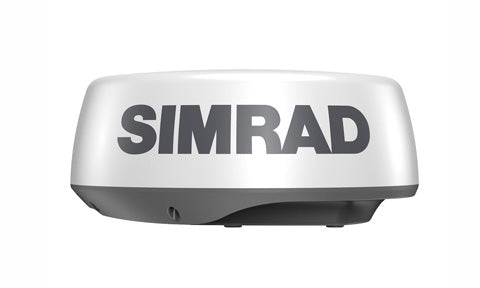

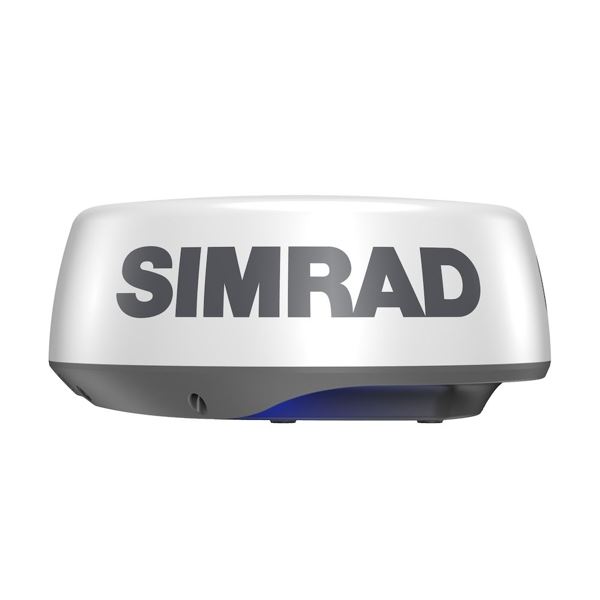

Simrad Halo20+ Pulse Compression Radar

Manufacturer Part Number:

000-14536-001

Enquire

Price Checked √

£2,275.00 inc VAT

£1,895.83 ex VAT

Manufacturer Part Number:

000-14536-001

36 nm range from a compact 20-inch dome. Advanced pulse compression technology with beam sharpening. Simultaneous Dual Range operation sees both near and far. Ultra-fast 60 RPM operation at ranges up to 1.5 nm. VelocityTrack™ Doppler technology for collision avoidance. Easy operation with harbour, offshore, weather, and bird modes. MARPA target tracking (up to 10 targets, 20 in dual range). Ready instantly from standby. Comes with 10 meter radar cable.

Home or Marina Delivery

Get it as soon as tomorrow

Enter postcode to check

Pick up at Hamble

Pick it up today

More Information

Simrad Halo Radar Navigation

Explore Halo Radar

Shop Halo Radar

Shop Simrad Radar

Simrad Home

Approvals

Compliance	FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

Electrical

Power Consumption, max.	29W
Power Consumption, typical	20W
Recommended Fuse Rating	5A
Supply Voltage	10.5 - 31.2 VDC (12/24V systems)
Humidity	95% RH at 35°C (95°F)

Environment

Operating Temperature Range	-25° to + 55°C (-13° to +130°F)
Waterproof rating	IPX6

Physical

Dimensions (W x H x D)	510mm dia x 223 mm H. (20" dia x 8.8" H)
Weight	5.9 kg (13 lbs) without cable

Radar

Beam width	4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V
Max Range, scale	36 NM
Max Operating Wind Speed	100 knots (51 m/s)
Min Range, scale	50 m / 200 ft / 50 yd
Radar Modes	Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
Radar Technology	Pulse Compression
Rotation speed	Up to 60 RPM (Range Dependent)
