This product has been discontinued by Simrad and is no longer available to buy.
Simrad

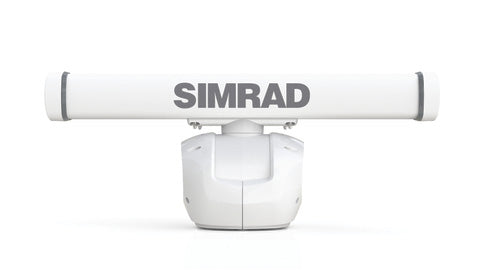

Simrad Halo 3 Pulse Compression Radar
Description
The Simrad Halo 3 is a complete open array pulse compression radar system built around a solid-state 25 W pedestal, a 3 ft antenna and the RI-12 interface module. The 3 ft array produces a 2.4 degree horizontal beam (sharpening to 1.7 degrees) and an instrumented range of up to 48 nautical miles, combining confident long-range detection with the clean close-in picture that pulse compression is known for.
Solid-state design means there is no magnetron to wear out and the system is ready to transmit in 16 to 25 seconds from power-on, while low-power pulsed transmissions make it safe to run in harbours and marinas. Antenna rotation is software-controlled at approximately 24 to 48 rpm, and the supplied RI-12 module brings NMEA 2000 and NMEA 0183 navigation data into the radar. Built to IEC60945 with IPX6 weatherproofing, the Halo 3 connects over Ethernet to compatible Simrad displays.
PRODUCT DETAILS
- 25 W solid-state open array pulse compression radar system
- 3 ft antenna with a 2.4 deg horizontal beam (1.7 deg with beam sharpening)
- Instrumented range up to 48 nm
- No magnetron, ready to transmit in 16-25 seconds from power-on
- Software-controlled rotation, approximately 24 to 48 rpm
- Includes the RI-12 interface for NMEA 2000 and NMEA 0183 data
- Built to IEC60945 with IPX6 weatherproofing
- Low-power pulsed transmissions safe for harbour and marina use
- HALO solid-state radar pedestal
- 3 ft open array antenna
- RI-12 radar interface module
- Interconnection cable
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
Simrad RI-12 Radar interface module for Halo Radar
Simrad Halo Radar Pedestal
Simrad Halo Open Array Radar Adapter Plate. Must be used with ADA-R1
Simrad Halo Pedestal, Spare Mounting Kit
Simrad Halo Spare Antenna Mount Kit
Simrad Halo Spare, Motor Assy, Type-1
Simrad 3FT Open Array Radar Antenna, for Halo
Seaview Mount 4 degree direct Open Array Radar wedge for Simrad Halo
Simrad NSS evo3 7
Simrad NSS evo3 9
Simrad NSS evo3 12
Simrad NSS evo3 16
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSS12 EVO3S 12 Inch MFD
Simrad NSS16 EVO3S 16 Inch MFD
Simrad NSO EVO3S MPU
Simrad NSO EVO3S 16 Inch MFD
Simrad NSX® 3009, No Transducer
Simrad NSX 3012 12 Inch Touch Screen Display With Active Imaging Transducer
Simrad GO7 XSR ROW 7 Inch Chartplotter and radar display no transducer
Simrad GO9 XSE MFD ROW GPS Wi-Fi 9 Inch Display No Transducer
Simrad GO12 ROW 12 Inch Display No Transducer
Range & Performance
| Radar type | Solid-state open array pulse compression radar |
| Antenna size | 3 ft |
| Instrumented range | 48 nm |
| Rotation | Approx. 24 to 48 rpm (min 20 rpm at max 70 kts), software controlled |
| Transmitter source | Solid-state module, no long-term power degradation |
| Power up time | 16-25 seconds from power off to transmit |
RF & Antenna
| Transmitter frequency | Synthesized, upper half of X-band 9.410 - 9.495 GHz |
| Peak power output | 25 W +/-10% (up to 10% duty cycle max) |
| Horizontal beam width | 2.4 deg +/-10% (-3 dB); 1.7 deg with beam sharpening |
| Vertical beam width | 25 deg +/-20% (-3 dB) |
| Plane of polarization | Horizontal |
| Pulse / chirp | Pulse 0.04 usec; chirp 2-96 usec, chirp bandwidth 2-32 MHz |
Electrical
| DC input | 12 or 24 V DC into the RI-12 (12 V: 10.8-15 V; 24 V: 20-31.2 V); pedestal 36 V DC from RI-12 |
| Power consumption | 180 W peak at max wind; 40 W average at zero wind; 6.5 W scanner + RI-12 in standby |
Physical
| Antenna swing circle diameter | 1141 mm (3.5 ft) |
| Height (with antenna) | 427 mm (16.81") |
| Component weights | Pedestal 18.75 kg, 3 ft antenna 4.1 kg, RI-12 1.6 kg |
Environment
| Operating temperature | -25 to +55 C (-13 to 131 F) |
| Waterproof rating | IPX6 |
| Relative wind velocity | 70 knots at 48 rpm with RI-12 |
Connectivity
| Communications | Ethernet 10/100 Base-T; NMEA 2000 and NMEA 0183 via RI-12 |
